Industrial planetary mixers

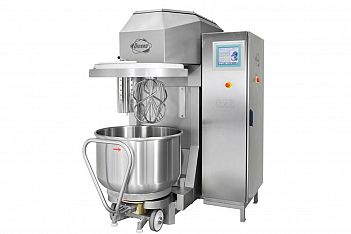

Premium special mixers with transport bowl and bayonet head for the use of various mixing tools: DIOSNA PSPVW 160, PSPVW 200, PSPVW 240
The PSPVW combines the advantages of a classic mixer with those of a planetary mixer – stirring, mixing and beating of all-in-masses, sand and quark masses, creams, fillings and pudding.

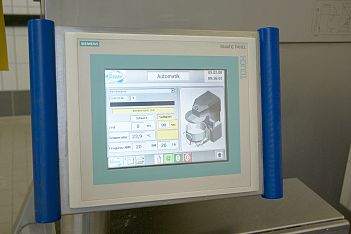

The machine is controlled by touch screen. For each recipe a program can be deposited. The bowl and tool speeds are separately controllable.
One big advantage of the machine is the large amount that can be produced in one batch. A cheesecake recipe of more than 200 kg can be weighed and added in a single batch instead of in several batches. The one-time weighing and serving in one step saves a considerable amount of time.

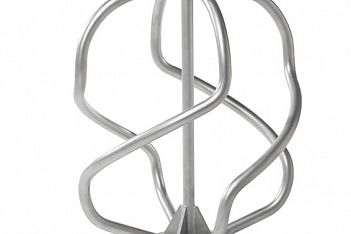

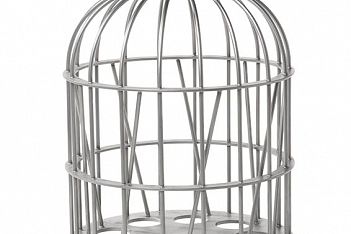

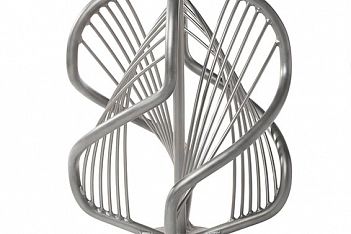

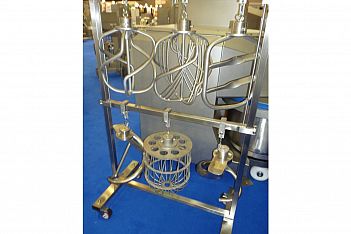

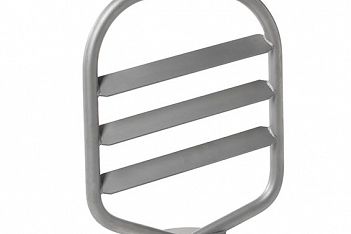

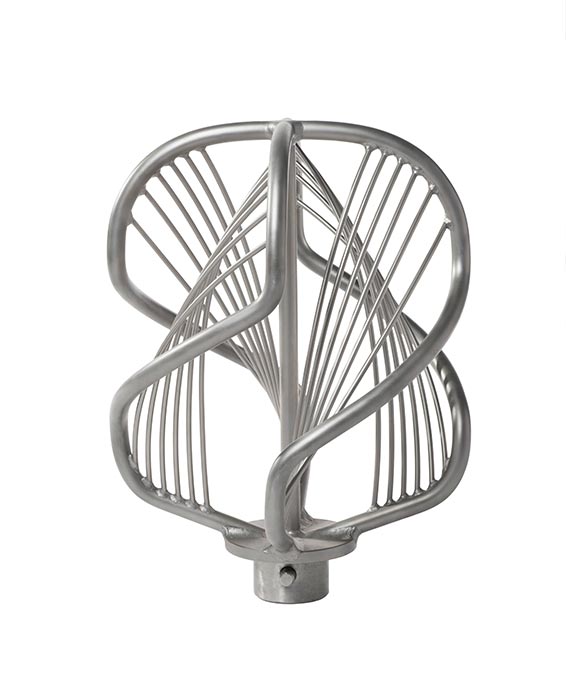

- Fast tool exchange via bayonet lock
- Programming via touch screen with up to 40 levels
- Tool and bowl speed per level freely selectable
- Masses can be produced in larger quantities
- Easy to clean
Options:
- Machine, bowl, tools and machine panel in stainless steel
- Machine with movable bowl
- Bowl hydraulically locked with stainless steel pliers
- Stationary version
- Touch screen with PLC version
- Frequency converter for bowl and tool motor separately controllable
Premium industrial mixers for creams and masses
Technical data:
| MODEL | PSPVW 160A | PSPVW 200A | PSPVW 240A |
| Bowl volume | 260 L | 300 L | 355 L |
| Dough capacity (max) | 160 kg | 200 kg | 240 kg |
| Flour capacity (max) | 100 kg | 1250 kg | 150 kg |
| Tool power | 22,0 kW | 22,0 kW | 22,0 kW |
| Bowl power | 1,5 kW | 1,5 kW | 1,5 kW |
| Fuse | 63 A | 63 A | 63 A |
| Weight (without bowl) | 1.320 kg | 1.320 kg | 1.320 kg |
| Weight (bowl with trolly) | 195 kg | 215 kg | 230 kg |
| Dimension:
width height depth |
1.311 mm 1.835 mm 1.485 mm |
1.341 mm 1.835 mm 1.485 mm |
1.561 mm 1.892 mm 1.485 mm |
